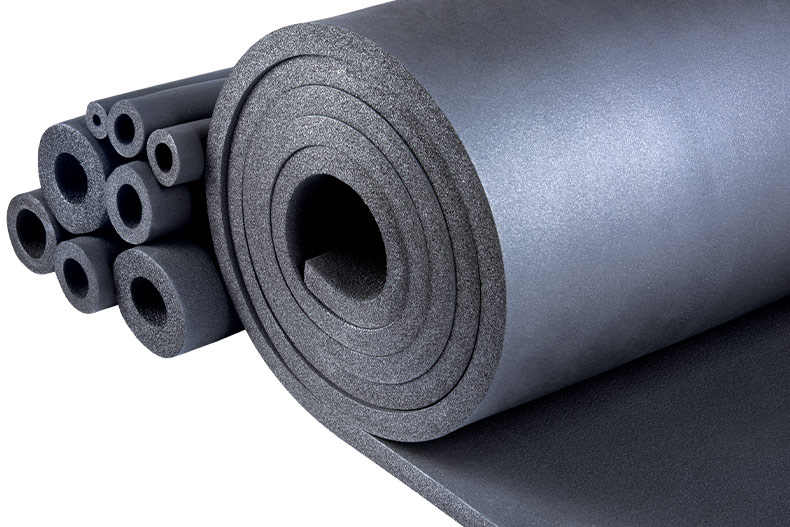

K-FLEX HT roll insulation

K-FLEX HT elastomeric foam insulation, which is made of ethylene propylene diene monomer EPDM, was marketed with the aim of saving energy in home solar systems and use in some special industries.

Higher temperature tolerance up to 150+ is one of the most important features of this insulation, which is considered in some special industries.

Also, the resistance to UV rays in this insulation is higher compared to K-FLEX ST, but it is still recommended to use this insulation outdoors with a cover.




Technical Specifications

Title: K-FLEX HT roll insulation

model: HT

brand: K-FLEX

type : Roll

thickness (mm): 9-13-16-19-25 mm

size (in): 1000 mm

installation: need for stick

Heat transfer coefficient (kg/m³): In accordance with INSO 8621 EN12667 standards

country: Italy

Technical Specifications


Technical Specification
Results
Description
Standard Thickness6-9-13-16-25- mm
Roll Width1000 mm
Nature
Ethylene Propylene DN Monomer

Thermal conductivity

(Termal conductivity-w/mk)

y=0.039    10'c

y=0.044    40'c

In accordance with ISO 8621

EN 12667

Energy saving percentage
65%=>94%
The percentage of energy saving is different based on thickness and implementation conditions in this range
Working temperature range
-40 --- +105For temperatures lower than -20 degrees, it is necessary to consult with the company's technical experts
Useful life
More than 30 years
Choosing the right thickness and correct implementation is effective in the life of the insulation
Reaction to fire
Slow burning and self-extinguishing Euroclass E
In accordance with EN 13501
Short-term water absorption coefficient
less than 8% of the initial weight
In accordance with ASTM C209, EN 1207
Resistance to water vapor penetration
μ>3500
In accordance with DIN EN12086 , INSO 7299


%70.0

Less installation time
